‧ 4 mega pixels for up to 1920x1920 resolution at 30 fps
‧ PoE, WiFi or wired Ethernet network connection
‧ Plug & play by ID/password, no IP address or DNS settings
‧ H.264/H.265 video compression
‧ De-warping mode on App/VMS: 1O, 1P, 2P, 4R,Wall mode
‧ Day and night video with 3 high power IR led
‧ SD card video recording with 5 seconds of pre-recording
‧ Time lapse video recording
‧ Triple video streaming on PC, mobile and SD card recording
‧ Night mode control – support automatic, manual and scheduled modes
‧ Connect up to 8 users simultaneously
‧ Bundle with free video management software CamView(Windows)/mCamView2(iOS/Android)
‧ Push notification on iPhone/iPad and Android for motion and sound detection
‧ Email/ftp alarm message for motion and sound detection
‧ Event scheduling
‧ Video recording on NAS device
‧ Support ONVIF Profile S,T,G,Q
‧ Cloud Storage on Dropbox
‧ Internal real time clock
‧ Watchdog function to prevent system failure
PoE or DC 12V, 1A
PROCESSORS
RISC CPU, hardware video processing and compression.
NETWORK INTERFACE
Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45
PoE(Power over Ethernet) IEEE802.3af
WIRELESS INTERFACE
2.4G Hz WiFi
Range : 100 meters, line of sight
IMAGE SENSOR
RGB 5 Mega 1/2.7 inch CMOS
Automatic exposure control, automatic white balance,
automatic gain control, automatic brightness control.
LIGHT SENSITIVITY
0.2 Lux ( IR LED off )
0 Lux (with 10 meters IR LED on)
Automatically turn on the IR LED on low light environment.
IR LED
3 high power IR LEDs.
LENS
M12, 1.44 mm, F2.0, viewing angle- 360°,
Fixed iris. focus range: 50 cm to infinity

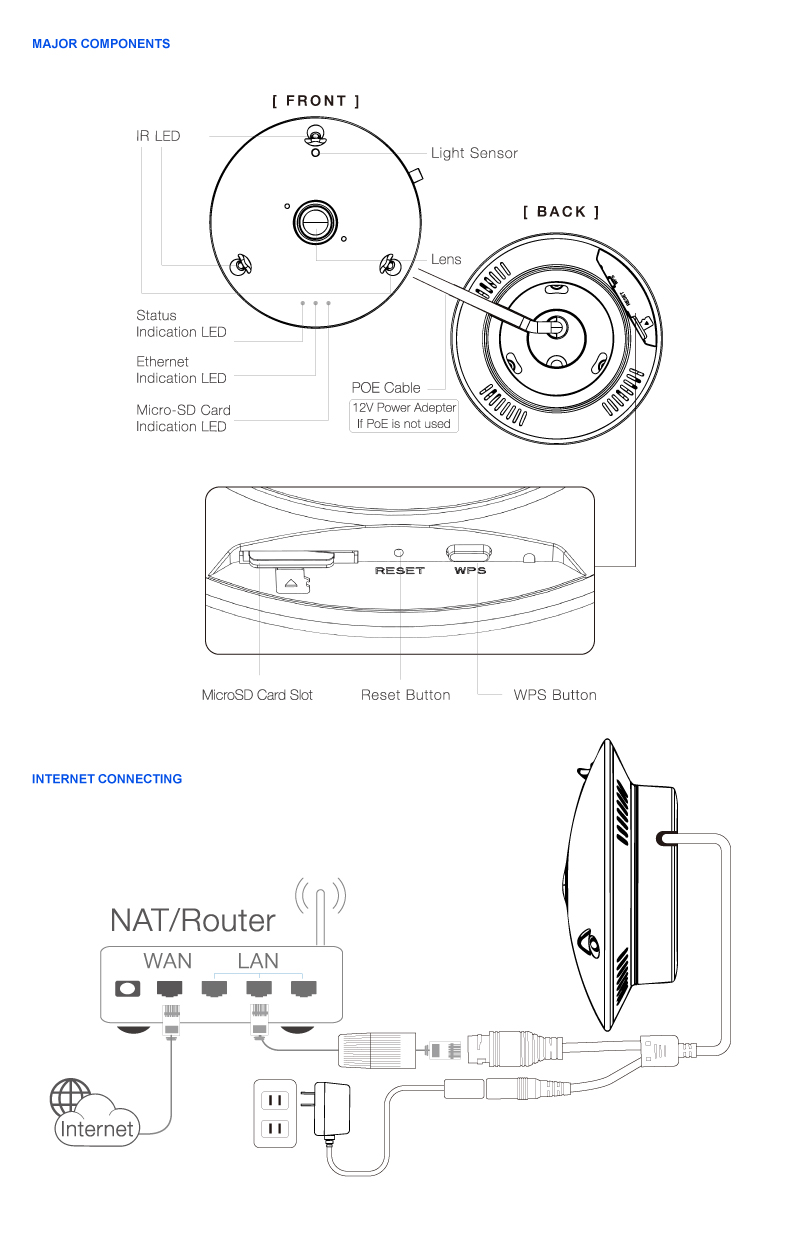

BUTTONS
One reset button, to factory default settings
One WPS button for automatic WiFi setup
INDICATORS
One LED for Internet connection status indication
One LED for Ethernet connection indication
One LED for SD card recording indication
VIDEO COMPRESSION
H.264/H.265, high profile
VIDEO STREAMING
Separate frame rate/resolution/bandwidth settings for PC and mobile.
VIDEO SETTINGS
Resolution: (4 mega) 1920x1920, 1536x1536, 1088x1088, 736x736
Bandwidth : 64k, 128k, 256k, 512k, 768k, 1M, 1.2M, 1.5M, 2M, 3M bps
Frame rate : 1~5, 10, 15, 20, 25, 30 fps
AUDIO
Built-in microphone for audio monitoring
Built-in 0.5W speaker for alarm and half-duplex two-way audio.
Audio compression: G.711
SECURITY
Web management username/password protection
Video display ID/password protection
INSTALLATION, MANAGEMENT AND MAINTENANCE
Plug & play by ID/password.
Video management software-CamView for video access and multi-camera management
Firmware upgrades via FTP/SFTP/HTTP
WEB BROWSING
Built-in web server for standard web browser access
Video snapshot on any browser
SUPPORTED PROTOCOLS
IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, SFTP, DHCP, ARP, DNS, PPPoE, etc.
ACCESSORIES (INCLUDED)
Bracket, power adaptor, RJ45 Ethernet cable, quick installation guide, ID/Password card.
VIDEO MANAGEMENT SOFTWARE
Surveillance software for viewing and archiving up to 36 cameras
USERS
Up to 8 simultaneous unicast users
(depends on video settings)
ALARM AND EVENT MANAGEMENT
Events triggered by motion and sound detection
Email/ftp alarm message
Push notification on iPhone/iPad and Android devices.
DIMENSIONS (HxWxD) WEIGHT
H:35mm, D:94mm(with bracket),
137g(with bracket)
OPERATING TEMPERATURE
0-40 °C
Humidity 20 – 80% RH (non-condensing)
